search for polymetal ores

examples of work in the search for polymetallic ores in various regions of Russia

The main task of the work: prospecting and evaluation of geophysical work on copper-nickel ores associated with differentiated massifs of the main and ultra-basic composition and preparation of the site for verification drilling.

Медно-никелевое месторождение, геофизика, Кольский п-ов, сзггк, геокомплекс

examples of work in the search for polymetallic ores in various regions of Russia

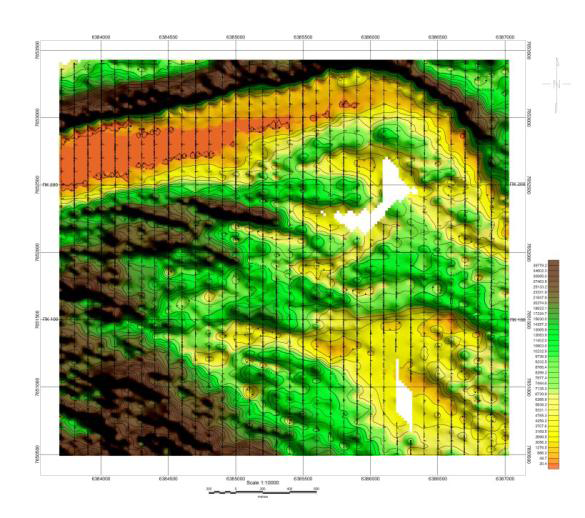

Map of apparent resistivity isolines

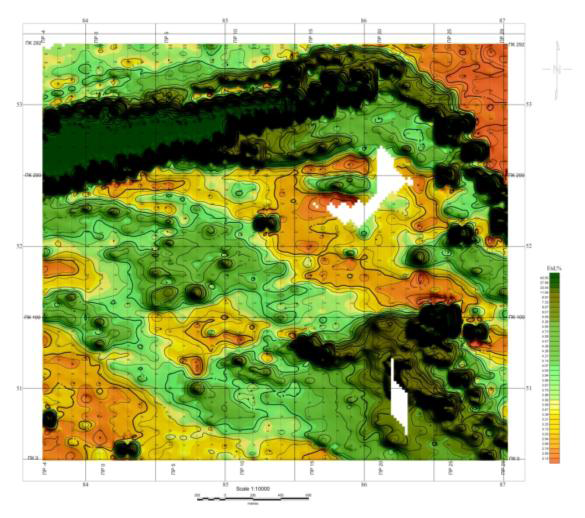

Map of isolines of apparent differential polarizability

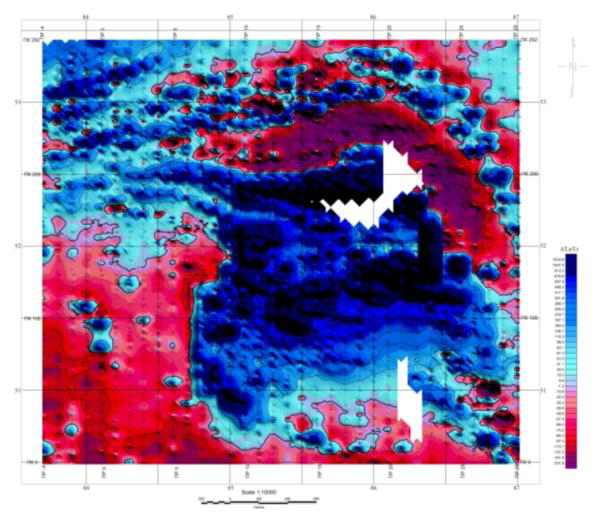

Map of the anomalous magnetic field

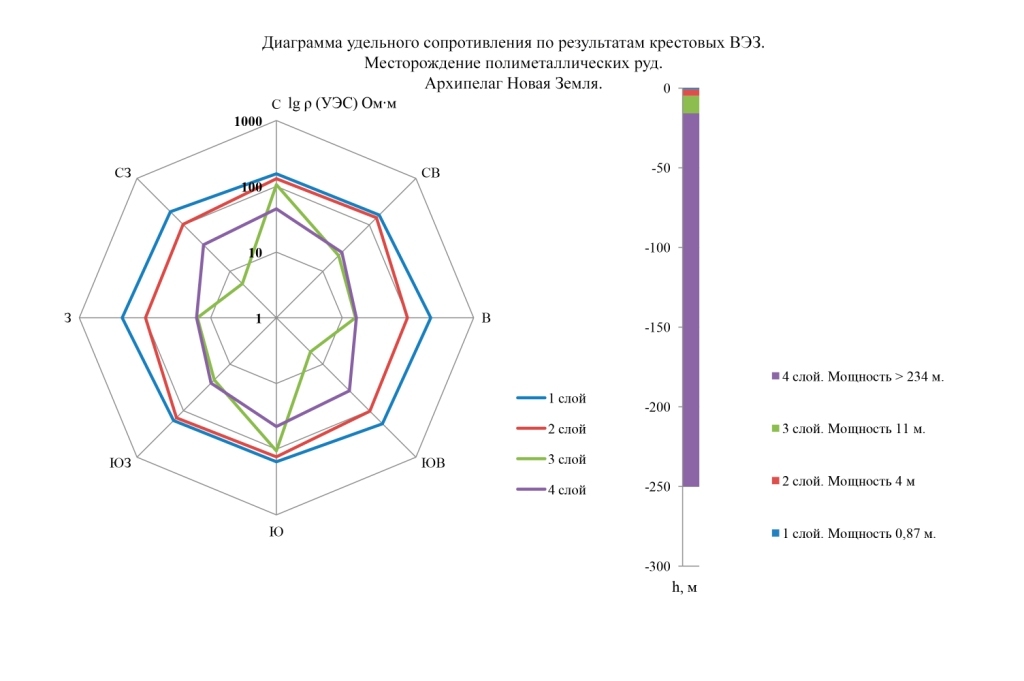

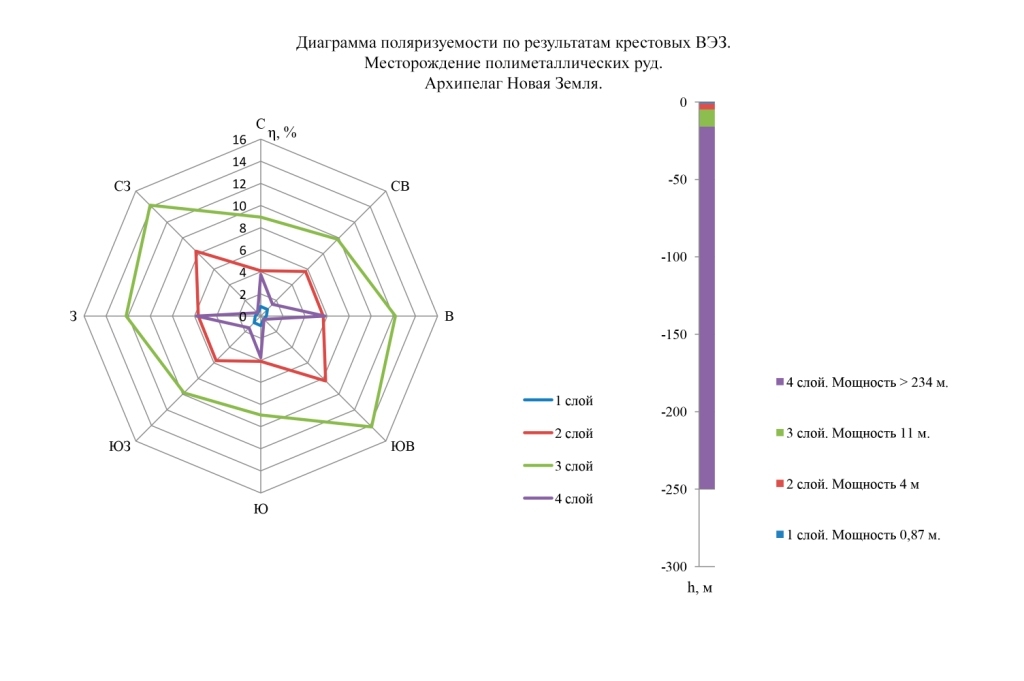

Lead-zinc ores. Pavlovskoye Field, Novaya Zemlya.

Electrical exploration was carried out to solve geological, structural, engineering, geological, and hydrogeological problems at the lead-zinc mineral area.

The main method for solving these tasks is conducting field electrical exploration using electric sounding, in the ERT sounding induced polarization methods.

To assess the direction of fracturing of bedrock, an electrical survey was conducted using the method of cross Vertical electrical sounding (AVES).

Purpose of the work: identification and tracking of potential ore zones of the Utkinsky ore field based on a set of geophysical data.

Медно-цинковое месторождение, электроразведка, удельное сопротивление, Урал, СЗГГК, Геокомплекс, СПб

Copper-zinc ores. Ural.

Медно-цинковое месторождение, электроразведка, электротомография, сопротивление, поляризация, Урал, СЗГГК, Геокомплекс, СПб

Медно-цинковое месторождение, электроразведка, вызванная поляризация, Урал, СЗГГК, Геокомплекс, СПб

Map of apparent resistivity isolines

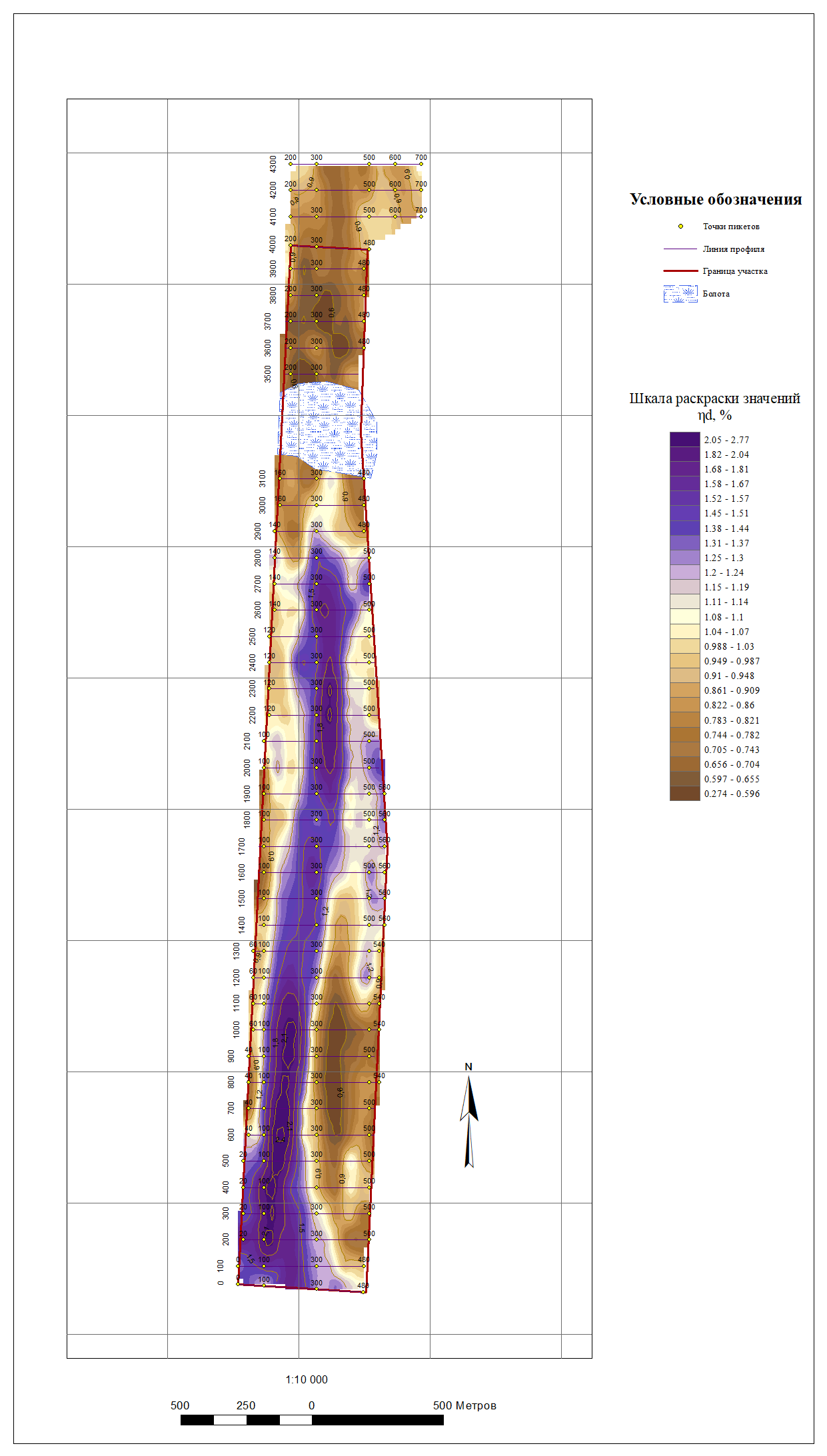

Map of isolines of apparent differential polarizability

Map of cluster analysis (K-mean) of the data array based on the results of areal geophysical works

Problem Statement:

- determine the geophysical features of potentially ore objects that are promising for Polymetal (copper-zinc) mineralization;

- identify promising anomalies for verification drilling operations.

Objects of this class are characterized by an increased content of sulfides (pyrite, chalcopyrite, sphalerite), which determined the composition of the complex of geophysical methods.

The complex of areal geophysical works included: electrical exploration by the method of induced polarization (IP) in the modification of the median gradient, magnetic exploration.

Медно-цинковое месторождение, электроразведка, классификация, Урал, СЗГГК, Геокомплекс, СПб

chart of an anomalous magnetic field

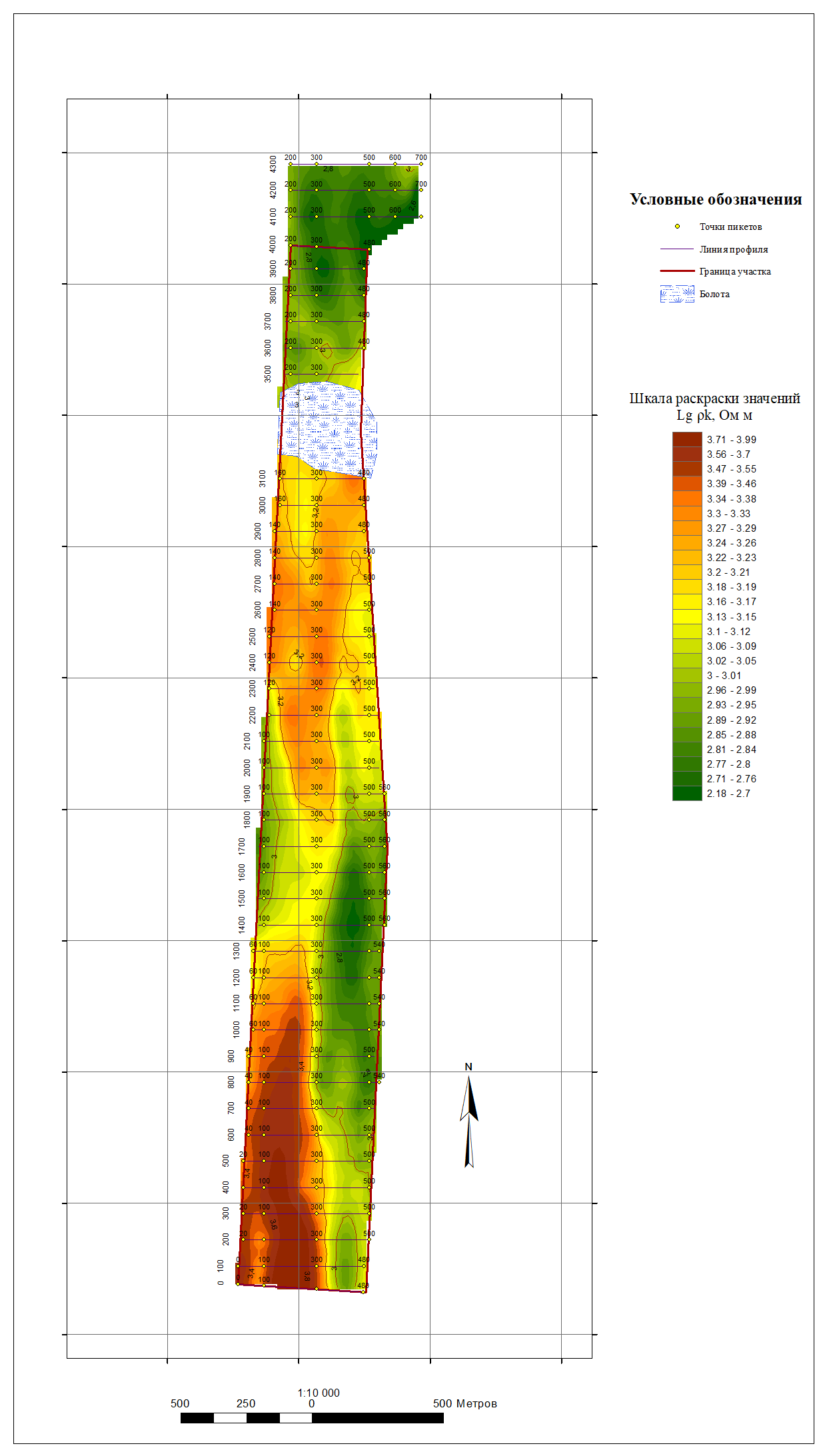

chart of the apparent resistivity

chart of IP, %

geoelectric section of volume resistivity

geological and geophysical interpretation chart

geoelectric section of polarizability

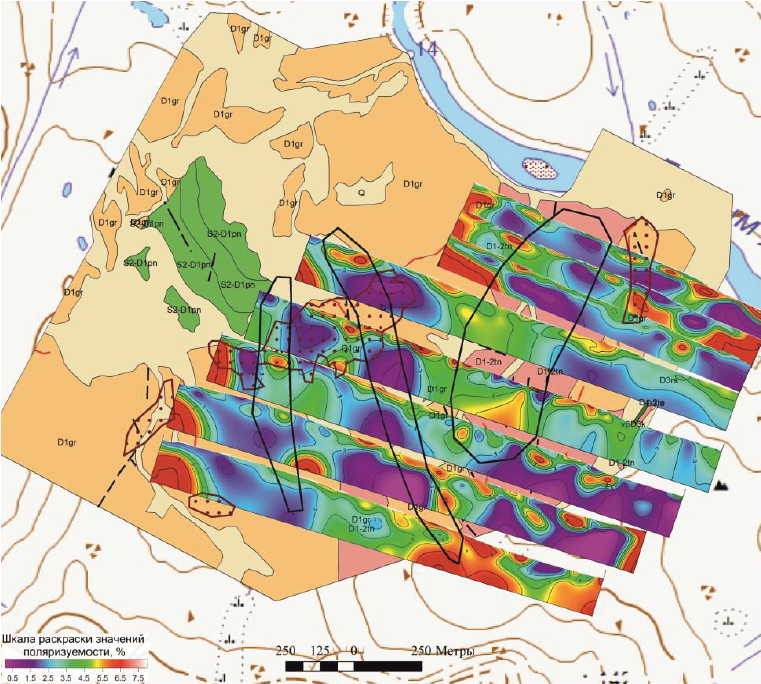

According to the control profiles, electrical exploration was performed using the IP method in the modification of the ERT (ERT sounding induced polarization). The results of the inversion based on the ERT sounding induced polarization data are presented below.

Медно-цинковое месторождение, электроразведка, удельное сопротивление, Урал, СЗГГК, Геокомплекс, СПб, 3D

Three-dimensional modeling of electrotomography data (3 profiles) with recommendation wells

Медно-цинковое месторождение, электроразведка, удельное сопротивление, Урал, СЗГГК, Геокомплекс, СПб, структурно-интерпретационная схема, геофизика

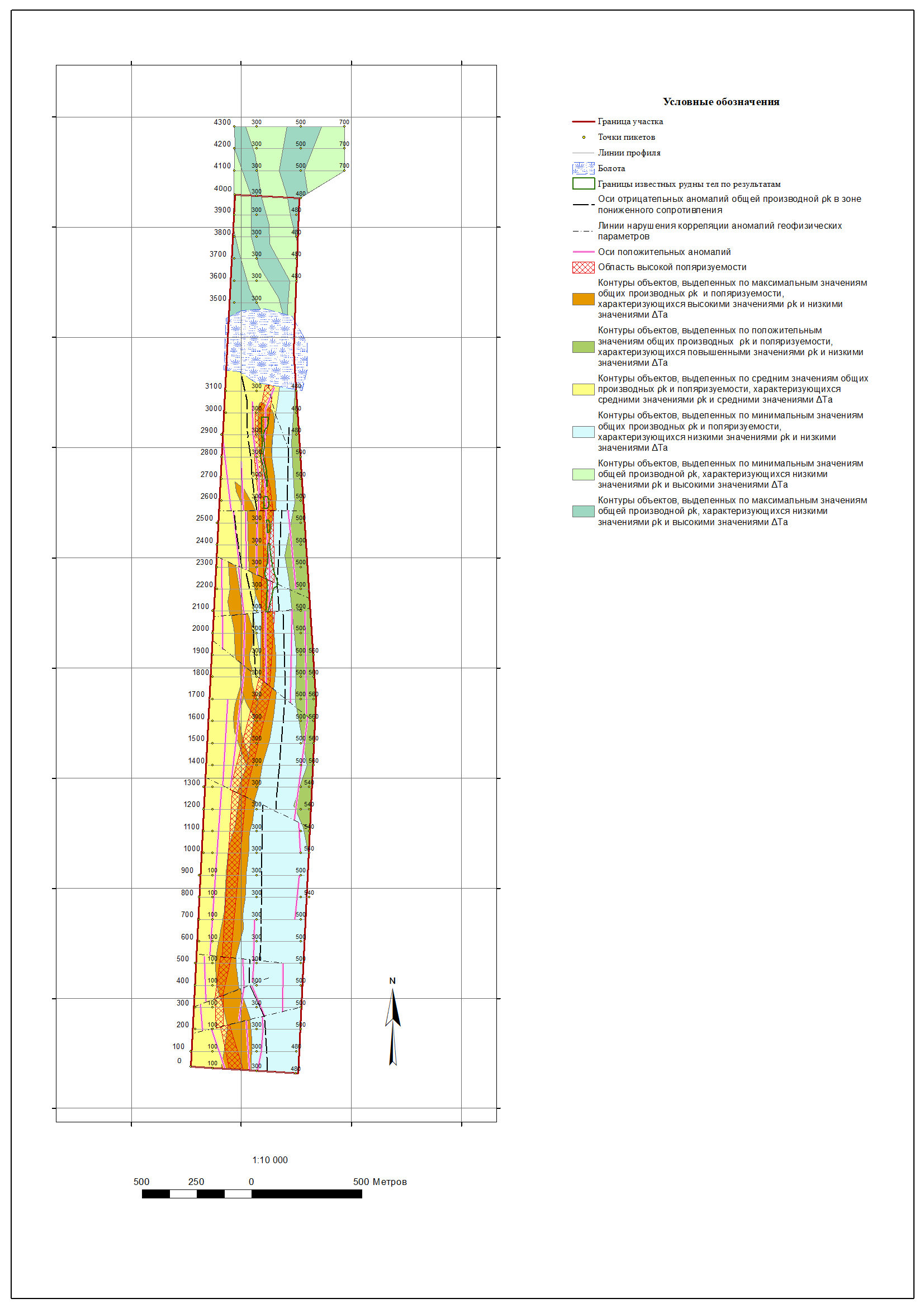

Final structural and interpretation scheme based on the results of geophysical work

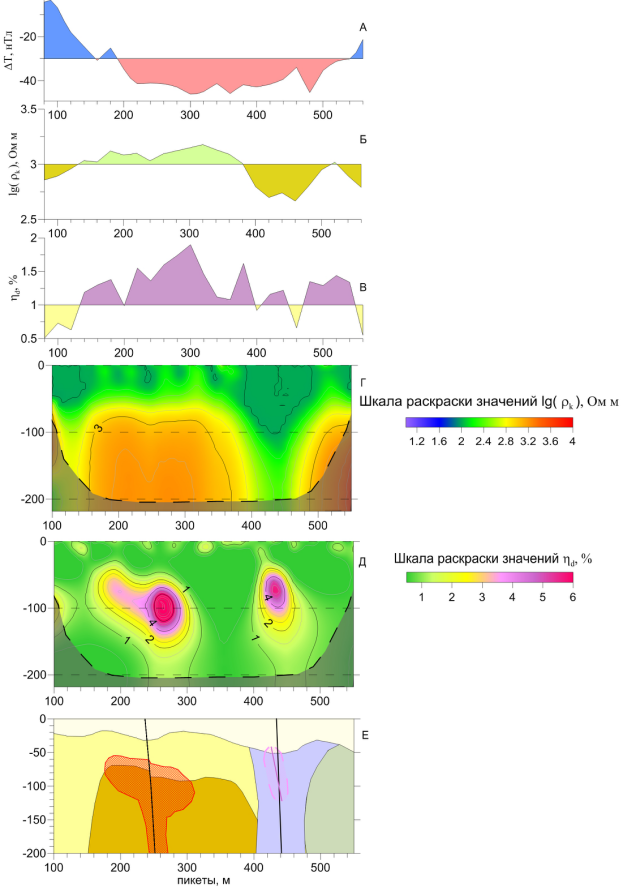

график аномального магнитного поля

график кажущегося удельного сопротивления

график кажущейся поляризуемости

геоэлектрический разрез удельного сопротивления

геоэлектрический разрез поляризуемости

геолого-геофизическая интерпретационная схема
