field data reinterpretation

Electrical exploration by the MT sounding-IP method (three-electrode installation, pole-dipole) in the tomography modification allows to build volume models of anomaly-forming bodies based on the results of inversion.

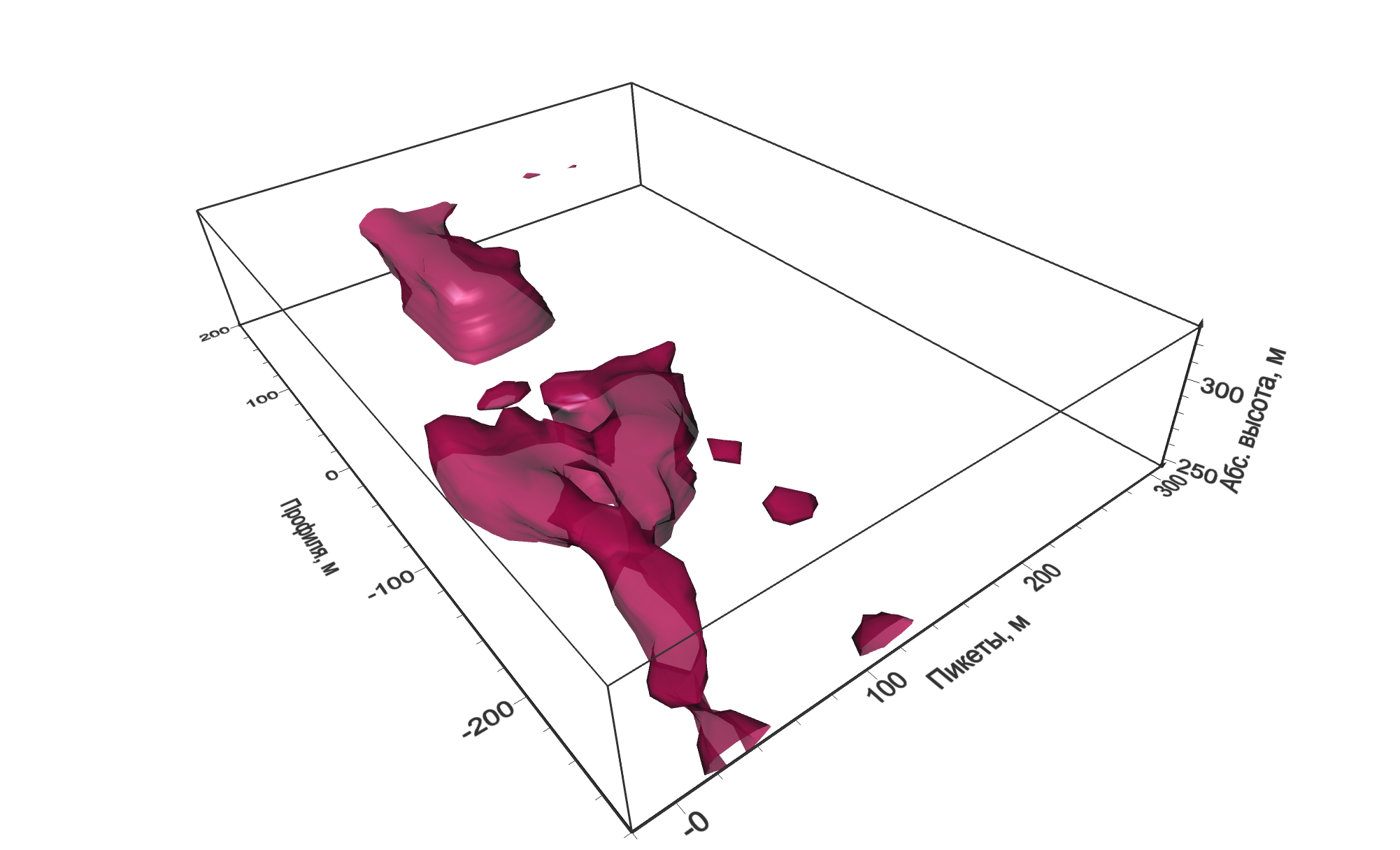

Polarizing three-dimensional model of the object according to the results of electrical tomography. Polarizability more than 7%

The object is represented as blocks of a certain length/width/height:10 m on the x-axis, 20 m on the y-axis, 2 m on the z-axis. The number of blocks that fall within the polarizability range of more than 7% is equal to 1981. Total volume of the anomaly-forming object: 792000 m3

A three-dimensional model of a polarizing object with a relief of the observation surface based on the results of electrotomography.
